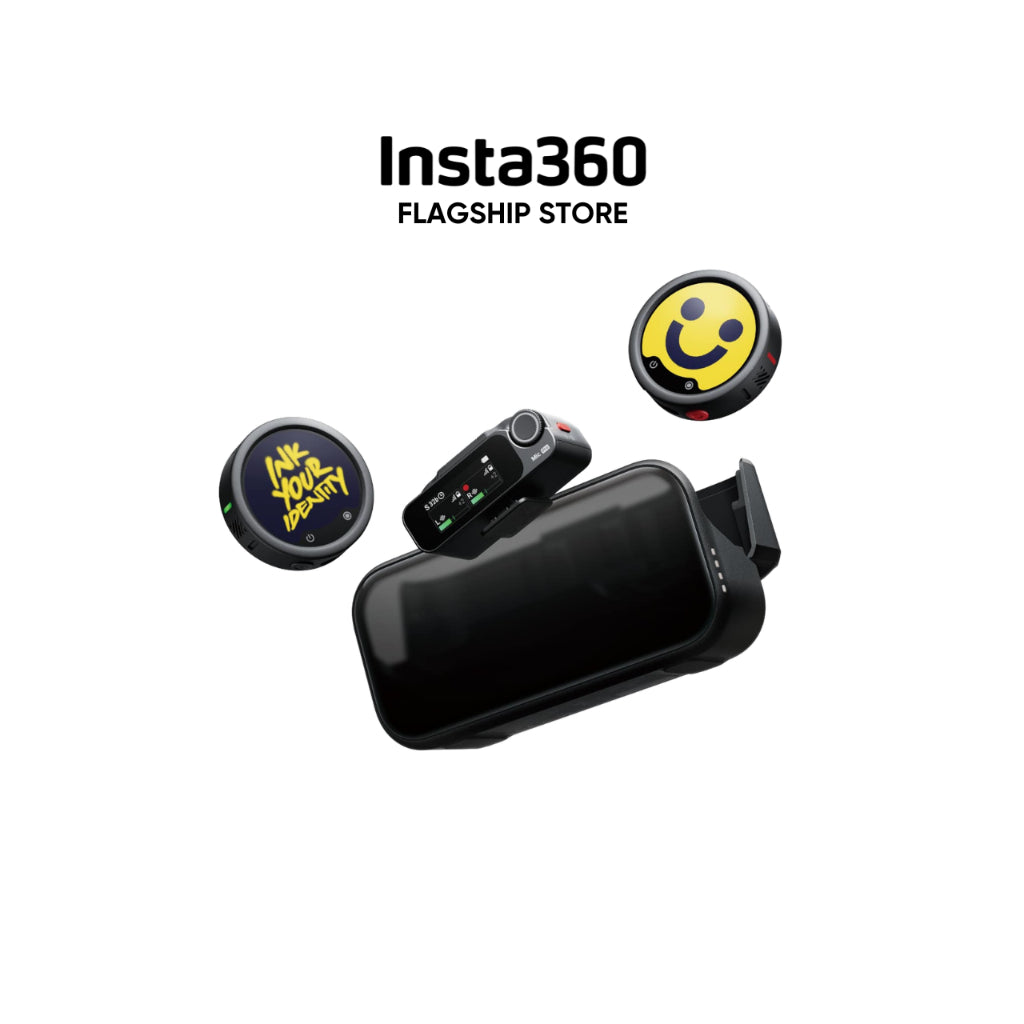

Insta360 NEW Mic Pro - Your Voice Your Style

SPECS:

Polar Pattern: Omnidirectional

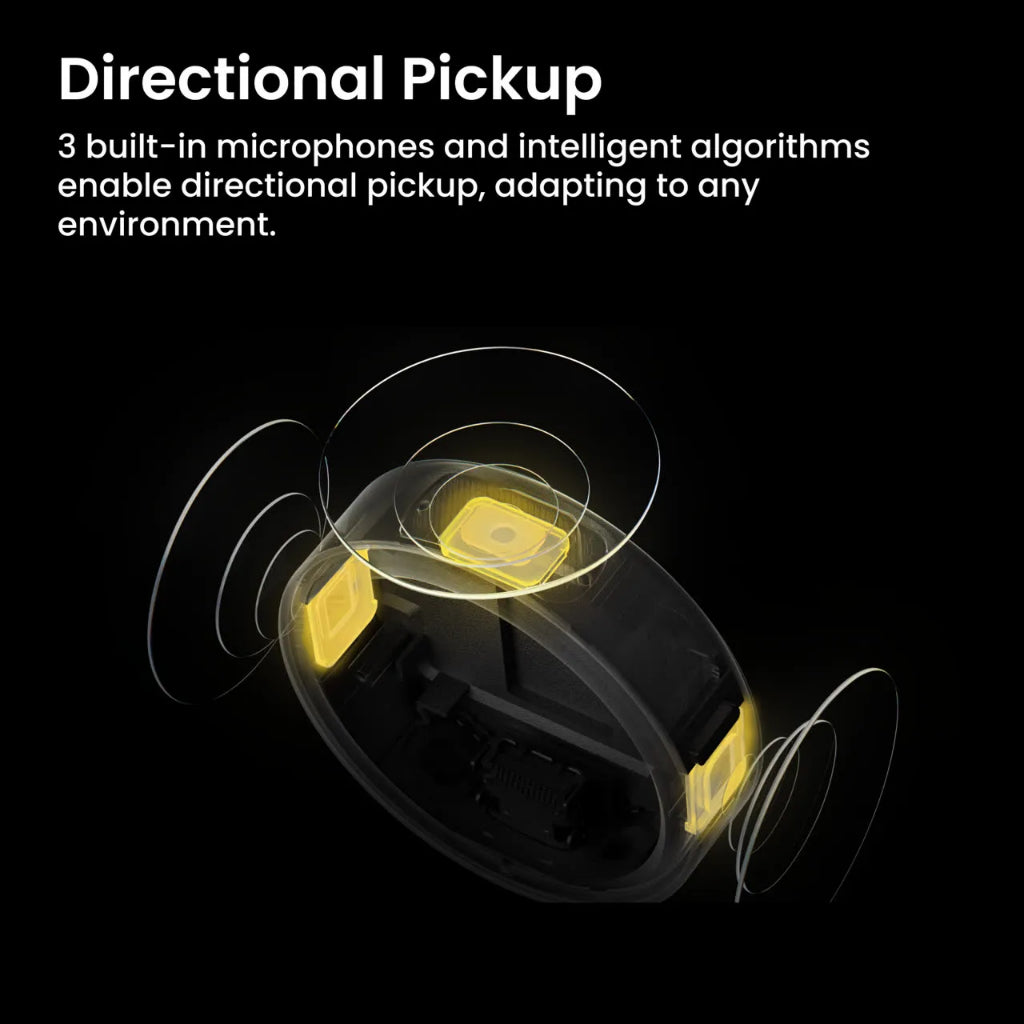

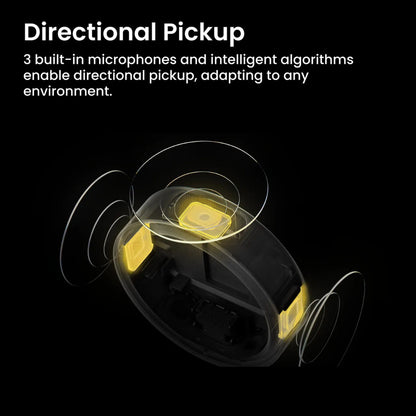

Selectable Pickup Modes: Omnidirectional/Super-directional/Cardioid/Figure-8

Frequency Response: Low Cut Off: 20Hz-20kHz,Low Cut On: 100Hz-20kHz

Microphone Sensitivity: Microphone Capsule: -38±1 dBV@1kHz, 94dB SPL

Signal-to-Noise Ratio (SNR):72dB (A-weighted)

Maximum Sound Pressure Level (SPL):130 dB SPL@10% THD

Sampling Frequency:48kHz

Bit Depth: 32-bit float/24-bit *32-bit float only applies to Transmitter's internal recordings.

Maximum Input Level (3.5 mm): -8dBV

Equivalent Noise: 22dB (A-weighted)

Monitor Interface Output Power: Max Output Power: 20 mW@1 kHz，32 Ω

Max Transmission Range: 400m

*400 meters is measured when the Transmitter is connected to the Receiver in an open, unobstructed, and interference-free environment. When the Transmitter is connected to Insta360 X5 via Bluetooth in an open, unobstructed, and interference-free environment, the transmission range is about 100 meters, which may be affected by device orientation, camera shooting modes, and other factors.

TRANSMITTER

Dimensions: 38 × 12.2mm (Diameter×H)

Weight: 19.7g (Without Clip)

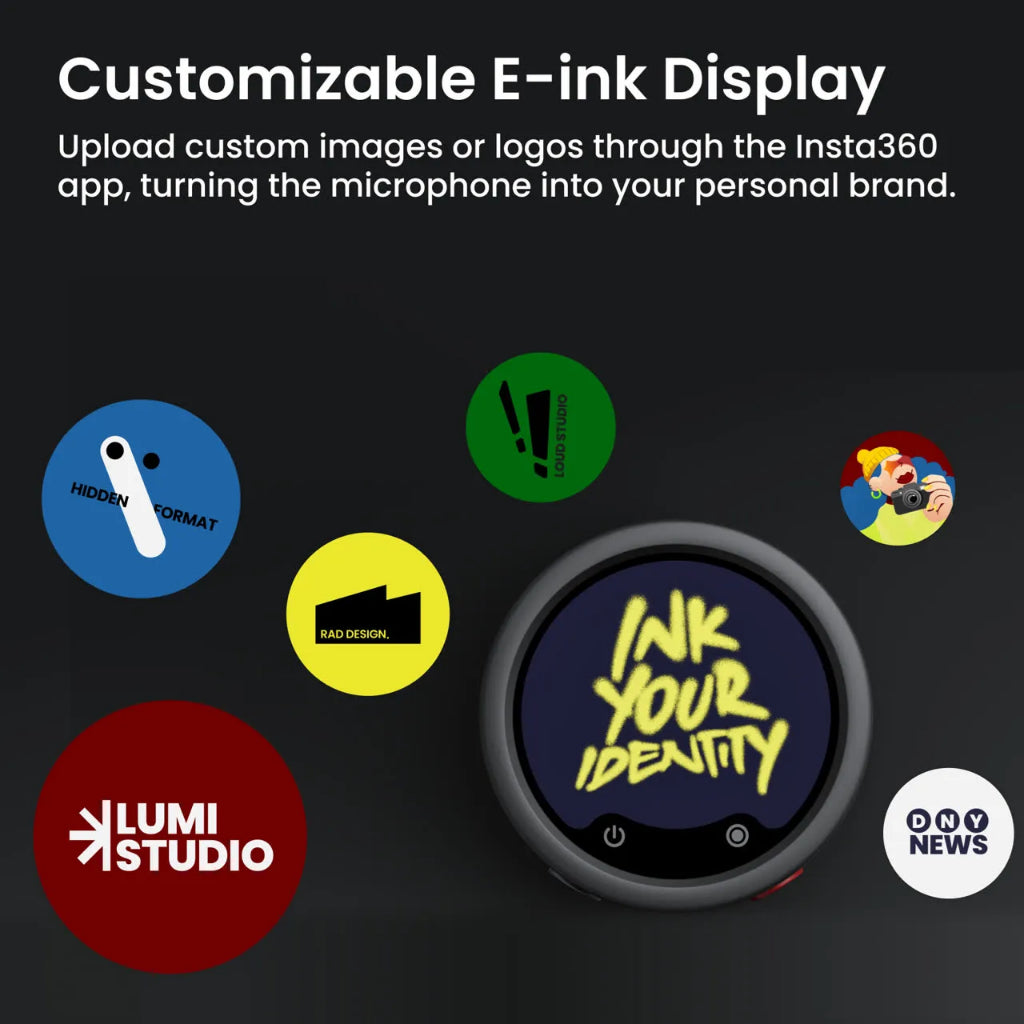

Display:6-Color E-Ink Screen

Size: 1.22''

Resolution: 240 × 208

PPI: 197 (Pixels Per Inch)

Wireless Mode: GFSK 1Mbps and 2Mbps

Equivalent Isotropic Radiated Power (EIRP):2.400-2.4835GHz: ≤ 20dBm (FCC/CE/SRRC/MIC)

Wireless Mode Operating Frequency:2.400-2.4835GHz

Bluetooth Protocol: Bluetooth V5.4

Bluetooth Operating Frequency: 2.400-2.4835GHz

Bluetooth Transmitter Power (EIRP): BLE: ≤ 20 dBm BR/EDR: ≤ 20 dBm

Battery Type: Li-ion

Battery Capacity: 240mAh

Battery Energy: 0.94Wh

Battery Voltage: 3.89V

Charging Specification: Max 5V

Charging Temperature: 0℃ to 45℃

Operating Temperature: -10℃ to 45℃

Charging Time: Fully charged in approximately 1 hour, 80% in about 24 minutes.

*Tested in a lab environment with a 5V/3A charger.

5-Minute Fast Charge: A 5-minute charge gives 1.5 hours of use.

*Tested in a lab environment with the Transmitter’s battery below 50%, charged with a 5V/3A charger. Noise cancellation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.

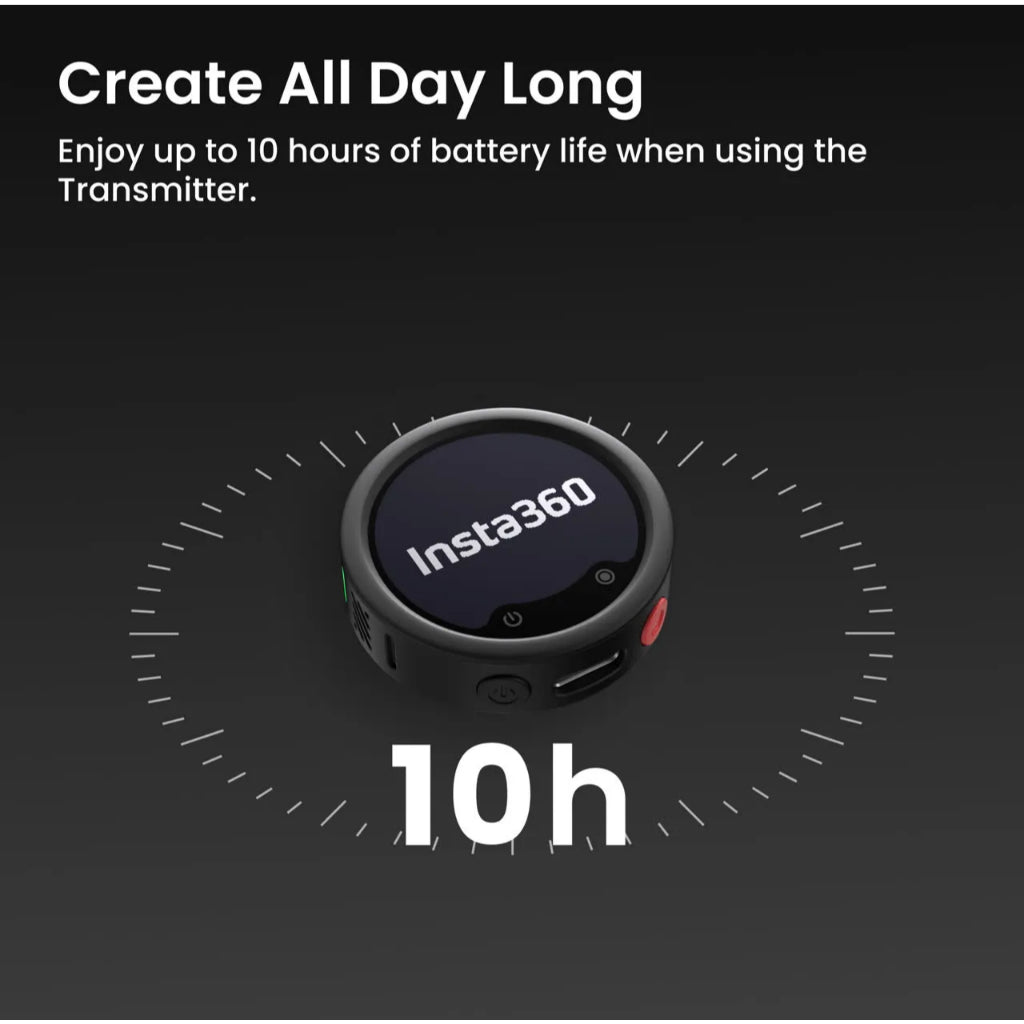

Operating Time: 10 hours

*Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancellation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable.

Onboard Memory: 32 GB

Internal Recording Available Duration:

24-bit (Mono Internal Recording): 60 hours

24-bit (Stereo Internal Recording): 29.7 hours

32-bit (Mono Internal Recording): 44.8 hours

32-bit (Stereo Internal Recording): 22.2 hours

RECEIVER

Dimensions: 55.80×27.65×21.00 mm (L×W×H)

Weight: 29.8g

Wireless Mode: GFSK 1Mbps and 2Mbps

Equivalent Isotropic Radiated Power (EIRP): 2.400GHz-2.4835GHz: ≤ 20dBm (FCC/CE/SRRC/MIC)

Operating Frequency: 2.400GHz-2.4835GHz

Bluetooth Protocol: Bluetooth V5.4

Bluetooth Operating Frequency: 2.400GHz-2.4835GHz

Bluetooth Transmitter Power (EIRP): BLE: ≤ 20 dBm

Battery Type: Li-ion

Battery Capacity: 410mAh

Battery Energy: 1.60Wh

Battery Voltage: 3.89V

Charging Specification: Max 5V

Charging Temperature: 0℃ to 45℃

Operating Temperature: -10℃ to 45℃

Charging Time: Fully charged in approximately 75 minutes, 80% in about 27 minutes.

*Tested in a lab environment with a 5V/3A charger.

5-Minute Fast Charge: A 5-minute charge gives 1.5 hours of use.

*Tested in a lab environment with the Receiver’s battery below 50%, charged with a 5V/3A charger. Noise cancellation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.

Operating Time: 11 hours

*Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancellation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable.

CHARGER

Dimensions:122.00×61.90×42.20 mm (L×W×H)

Weight:174g (Charging Case only, without included accessories)

Battery Type:Li-ion

Battery Capacity:2815mAh

Battery Energy:10.951Wh

Battery Voltage:3.89V

Charging Specification:Max 5 V

Charging Temperature:0℃ to 45℃

Operating Temperature:-10℃ to 45℃

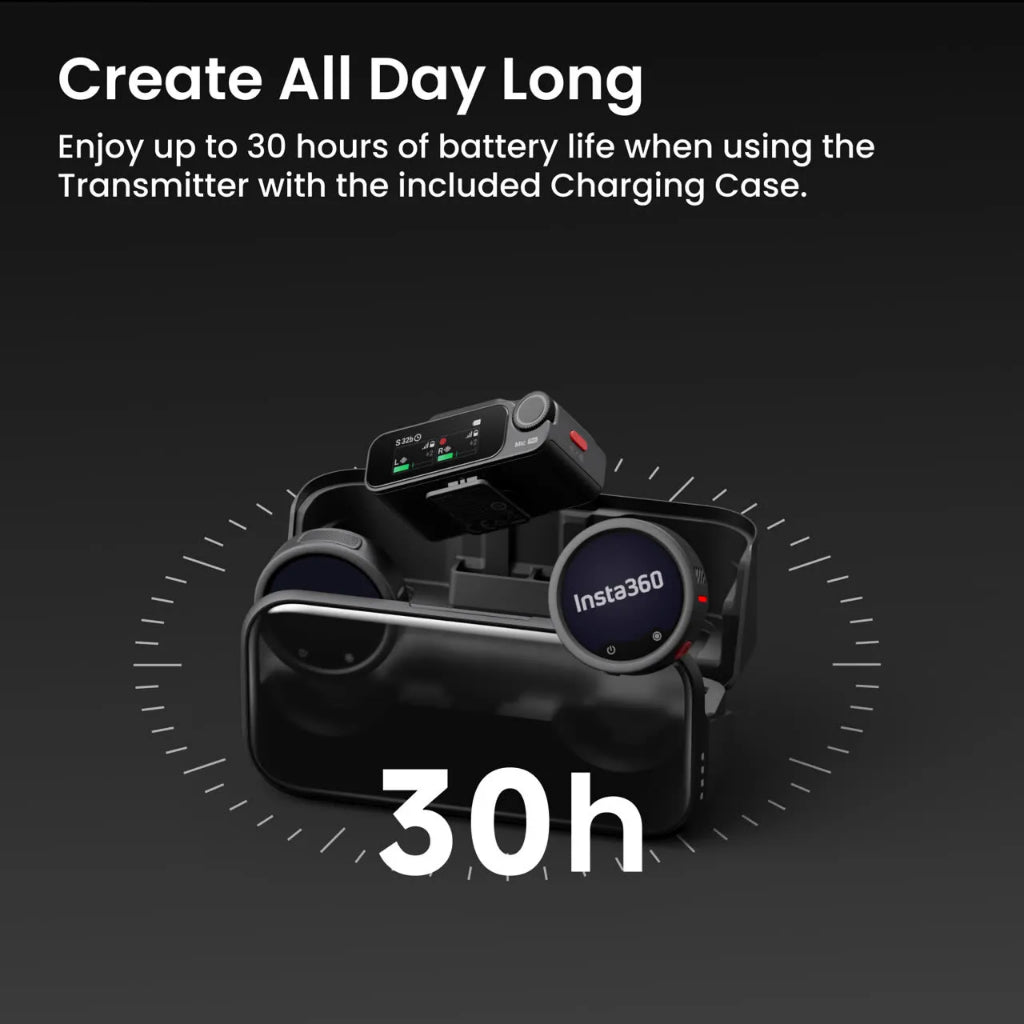

Operating Time with Charging Case:30 hours

*Measured using Insta360 Mic Pro (2 TX + 1 RX), with the Charging Case fully charged, noise cancellation and internal recording on the Transmitters are off. Close‑range recording in an interference‑free environment, with both Transmitters connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.

Charging Time:Approx. 2 hours

Charging Cycles for TX RX:When charging two Transmitters and one Receiver simultaneously,a fully charged case can charge approx. 2 times
