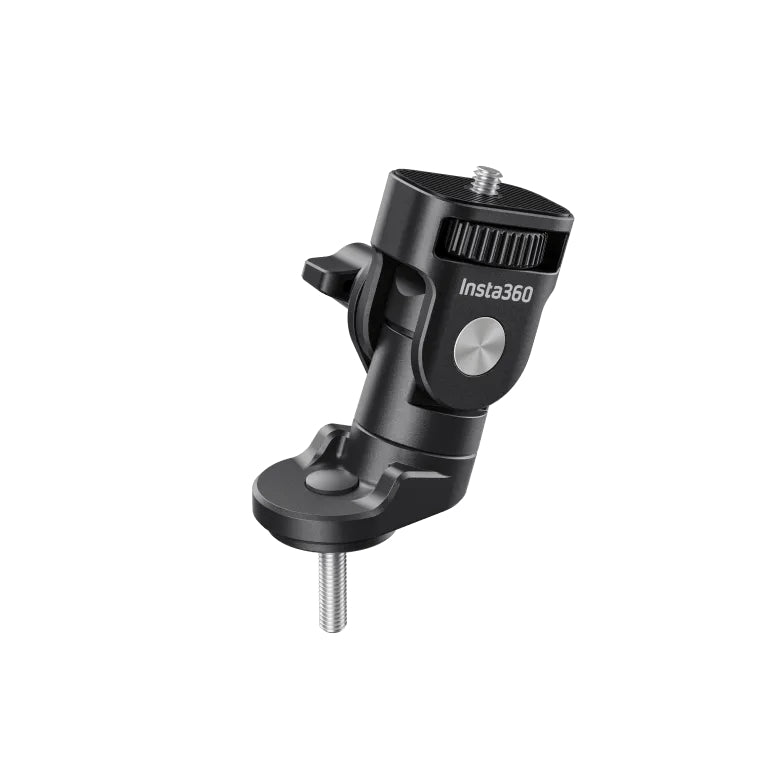

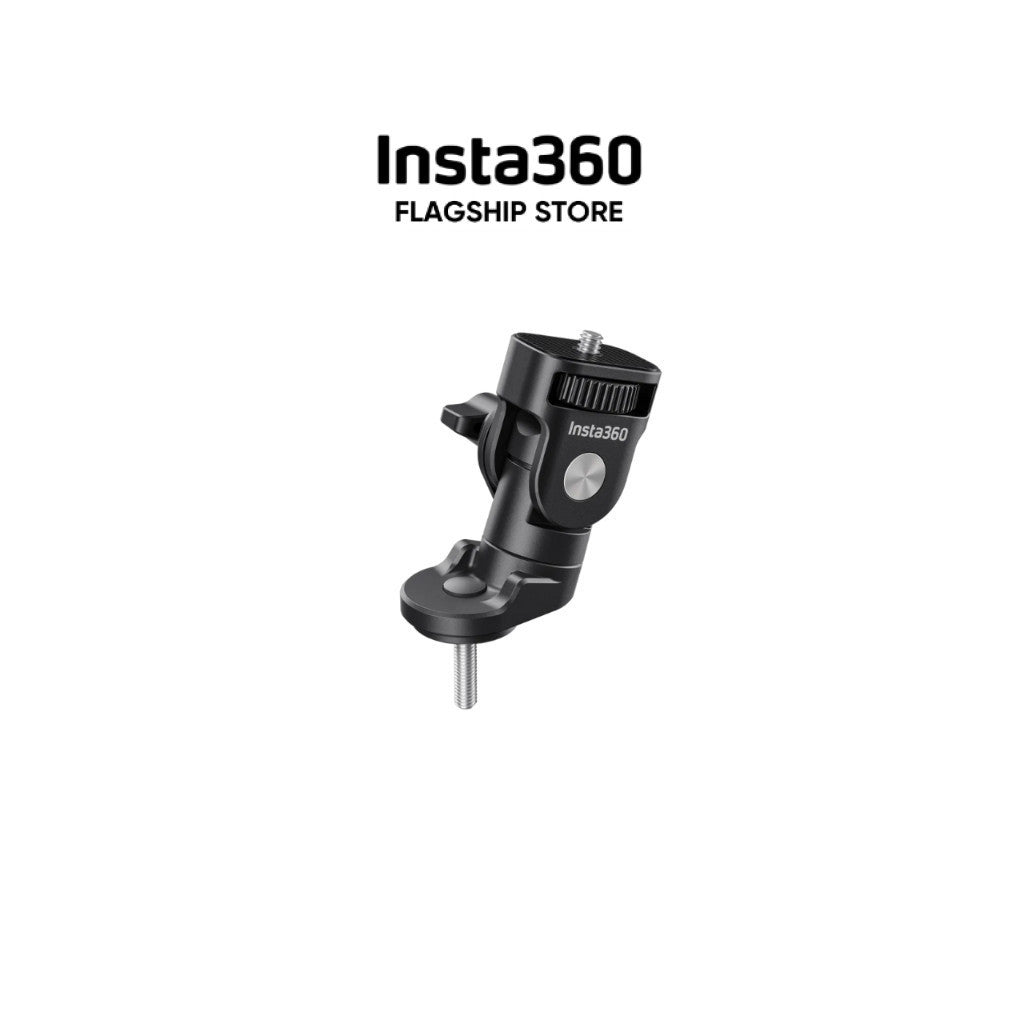

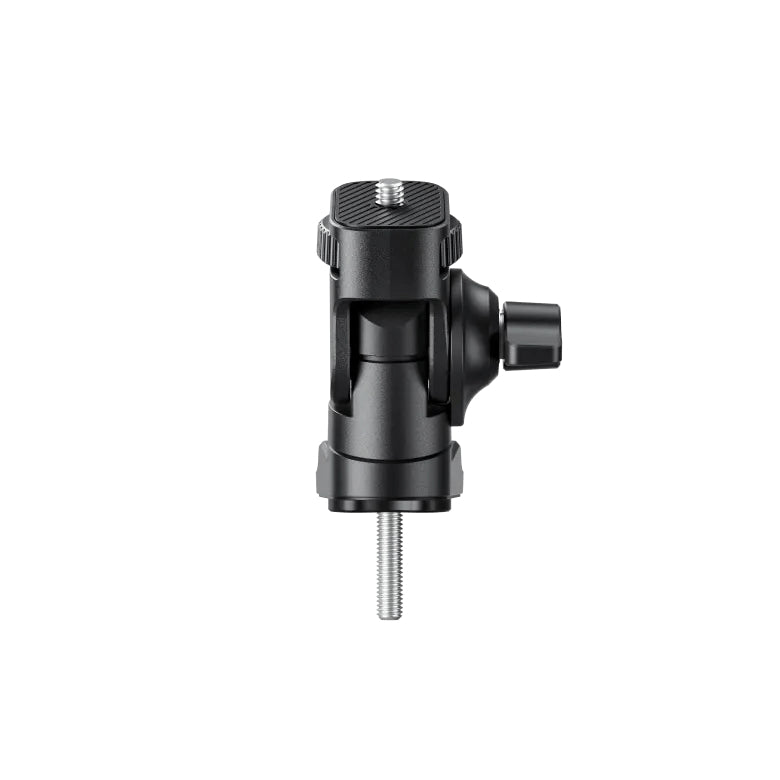

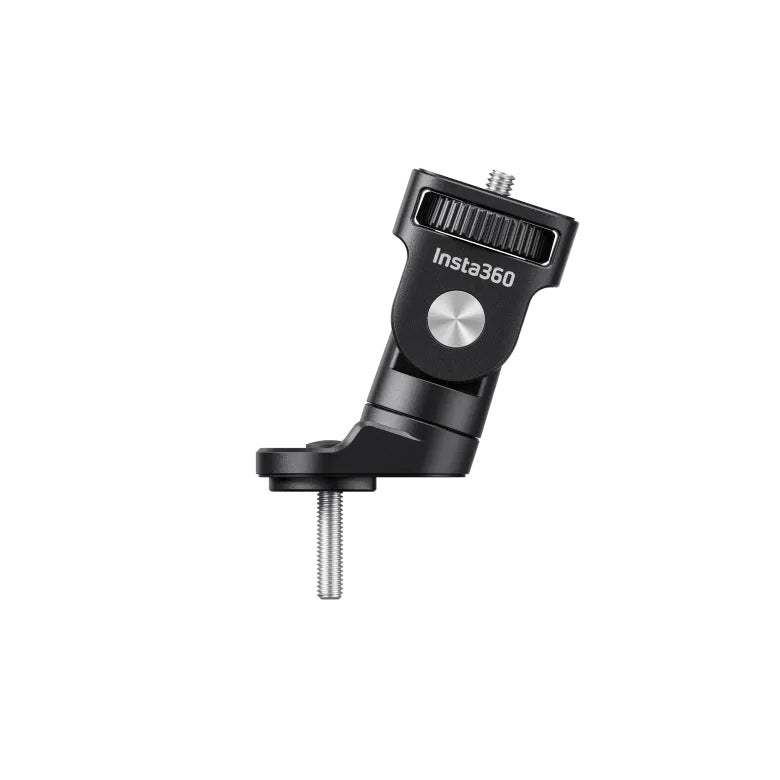

Insta360 Bike Headset Cap Mount

Bike Headset Cap Mount

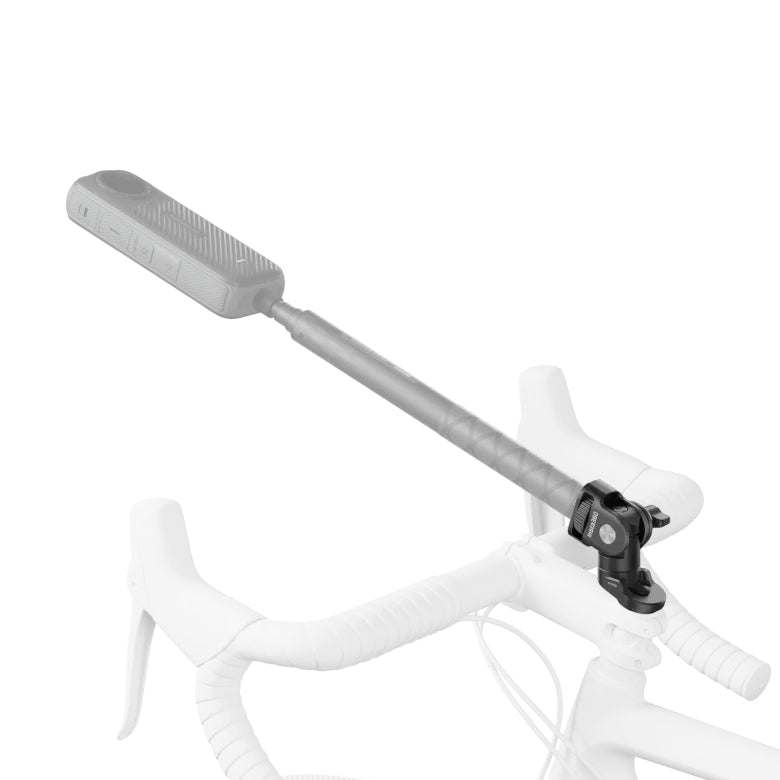

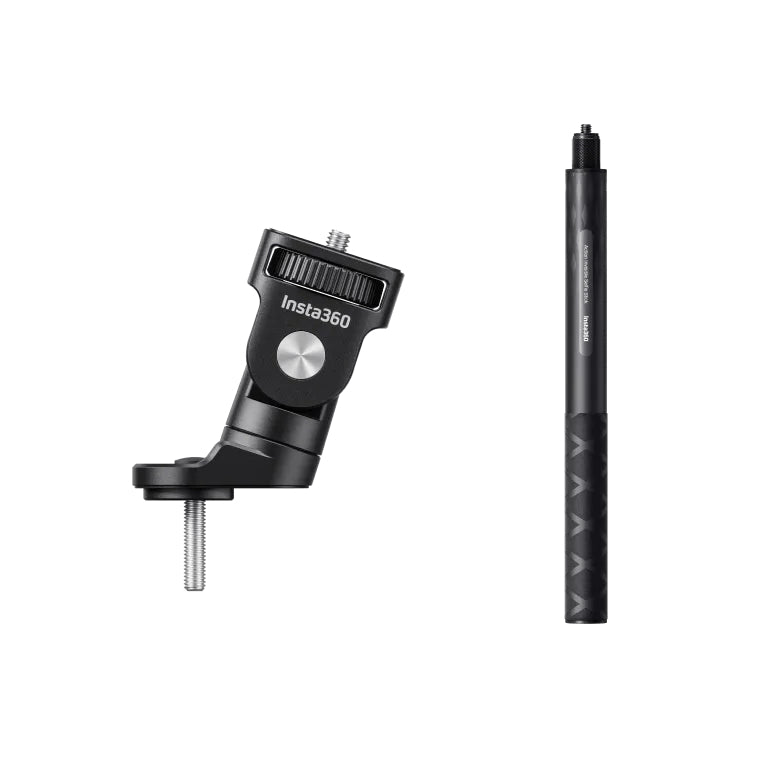

-Use with a 360º Insta360 action camera and the Action Invisible Selfie Stick for impossible third-person angles.

-This mount is only compatible with the Insta360 Action Invisible Selfie Stick.

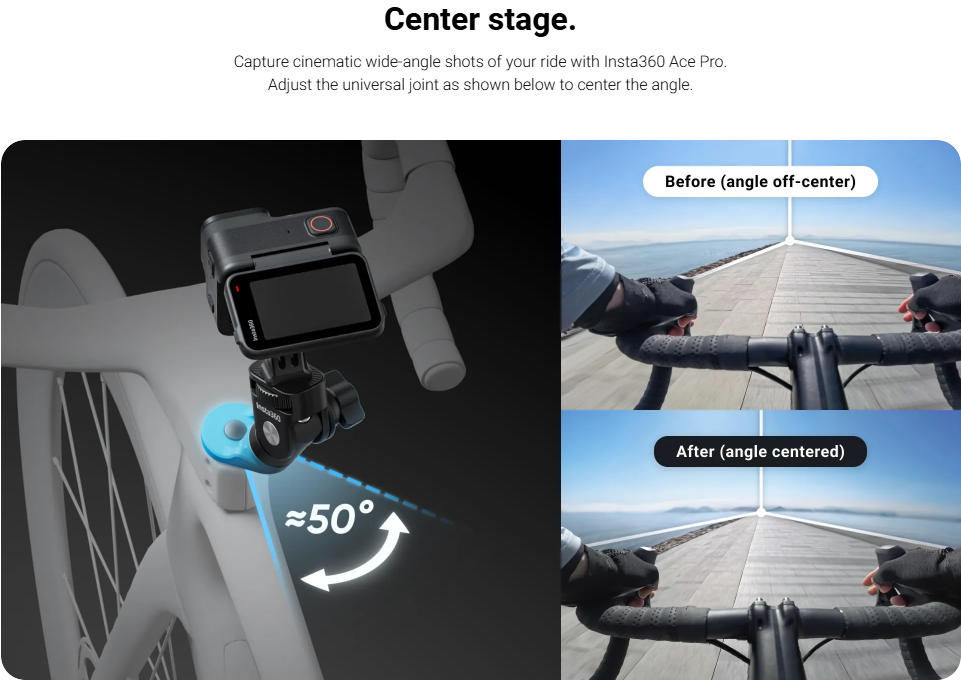

-Use with a wide-angle Insta360 action camera for immersive first-person POVs.

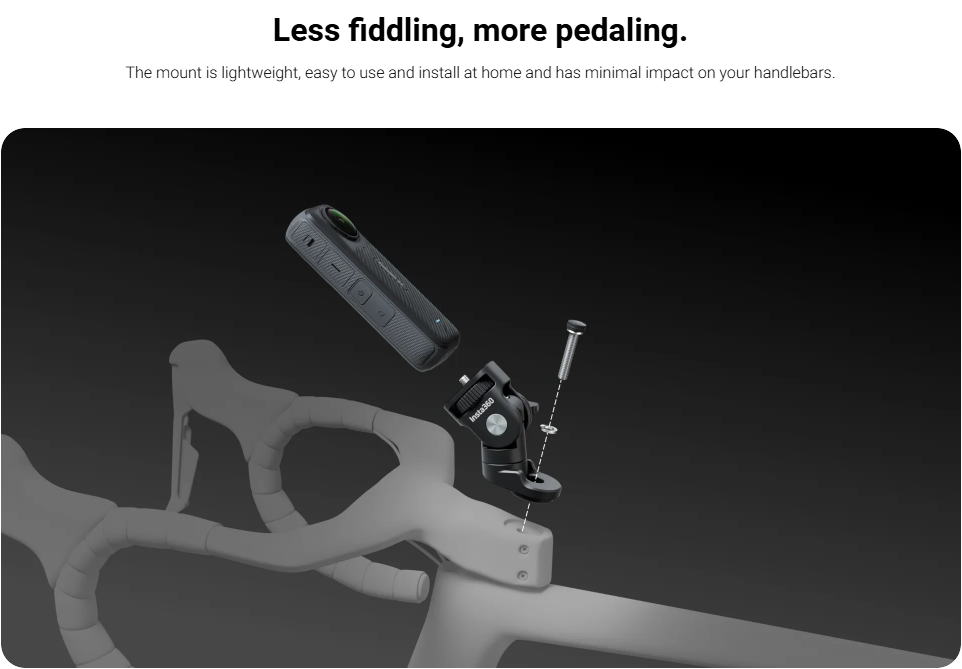

-Comes with everything you need for easy at-home installation.

-Sits securely on your bike's head tube, replacing any standard 28.6mm (1-1/8in) headset top caps.

Compatibility:

X4. Insta360 Ace Pro. Insta360 Ace, GO 3, X3, ONE RS (Twin/4K), GO 2, ONE X2, ONE R, ONE X

In the Box:

1x Bike Headset Cap Base

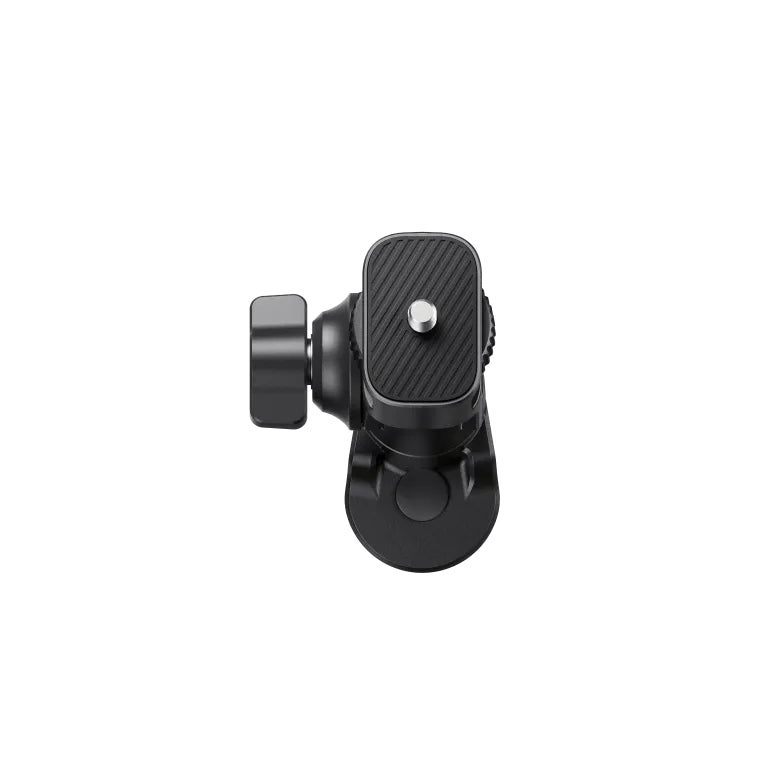

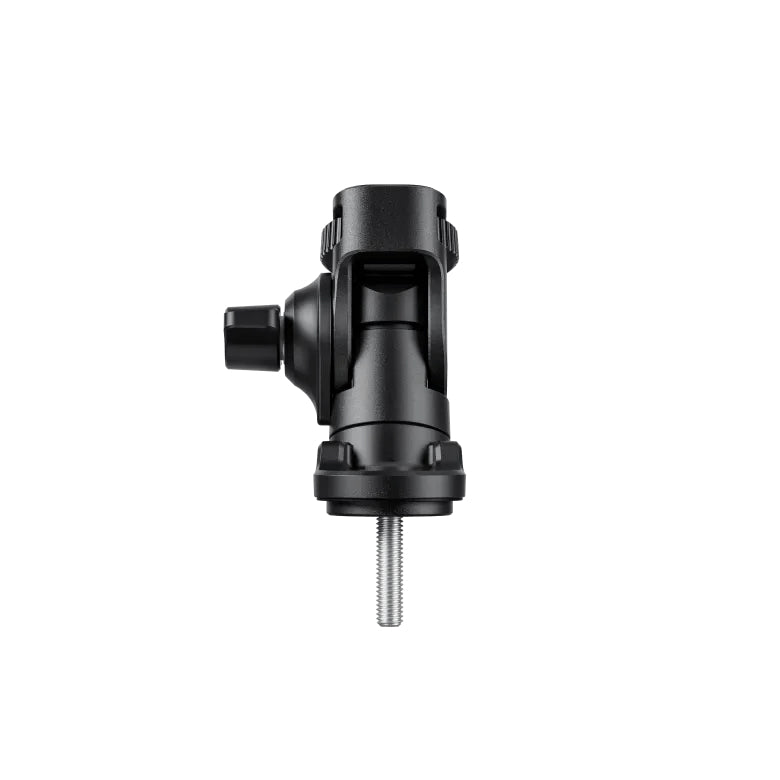

1x Universal Joint

2x Bike Headset Screw (20/30mm)

3x L-shaped Hex Key (3/4/5mm)

1x Thumb Screw

1x 3-Prong to 1/4" Adapter

2x Dust Caps

2x Anti-Slip Ring Sets

4x Anti-Slip Rings

Specs

Size:

74.17x74.12x53mm (2.92x2.91x2.08in)

Weight - Bike Headset Cap Base:

31g (1.09oz)

Weight - Universal Joint:

140g (4.93oz)

Material:

Aluminum alloy, stainless steel, silicone, plastic

Notes:

1. This mount is only compatible with standard OD1 specification handlebars or fork steerers with a diameter of 28.6mm (1-1/8in). It is unsuitable for non-standard bikes, non-circular handlebar head tubes, etc.

2. Ensure the mount is securely attached to the bike before attaching the camera. Tighten the mount using the included L-shaped Hex Key.

3. Ensure the bike fork's nut is secure before installing the mount. It is recommended to use a star nut or expander plug. Star nuts with insufficient friction or strength are not recommended, as they may come loose. When using an expander plug, place it 3-4mm away from the end of the bike's stem.

4. Place one Anti-Slip Ring Set onto the Bike Headset Cap Mount before tightening.

5. Once installed, cover the Bike Headset Screw with a Dust Cap to prevent rusting.

6. Wipe the accessory dry after every use to prevent erosion from water or sweat.

7. This product is designed for cycling on smooth roads at a maximum speed of 50km/h (31mph). It is not suitable for off-road.

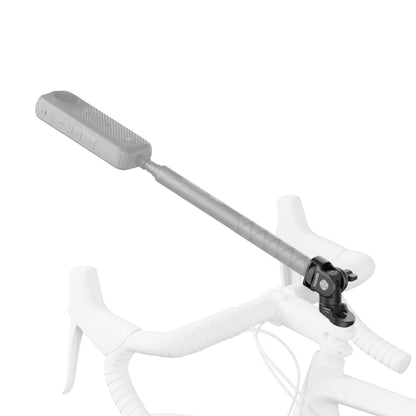

8. This mount is only compatible with the Insta360 Action Invisible Selfie Stick. To ensure your safety when cycling, if you need to extend the selfie stick, please extend it horizontally away from the wheel. The length should not extend past the front wheel.

9. If the bike is parked outdoors for an extended period, remove the mount and store it properly.

10. Please follow these instructions to install and use this accessory properly. Do not perform DIY or connect third-party accessories. Failure or damage caused by not following the instructions is not covered by Insta360 warranty or exchange services.
